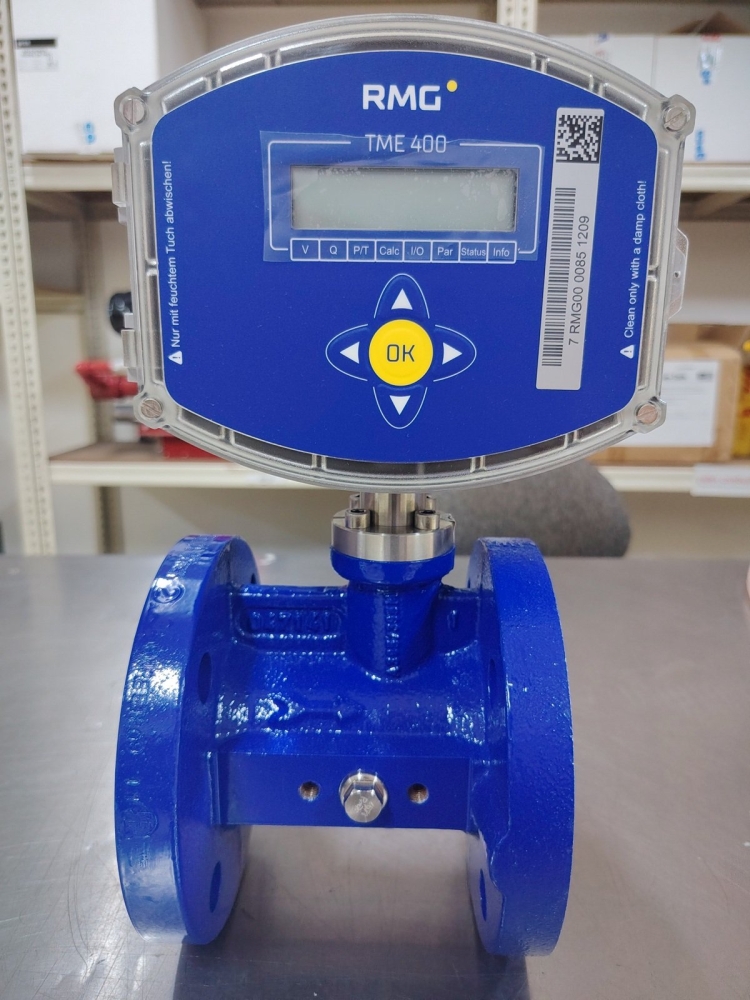

RMG Turbine Meter, DN50, 6-100 m3/hr

Jun 15, 2026

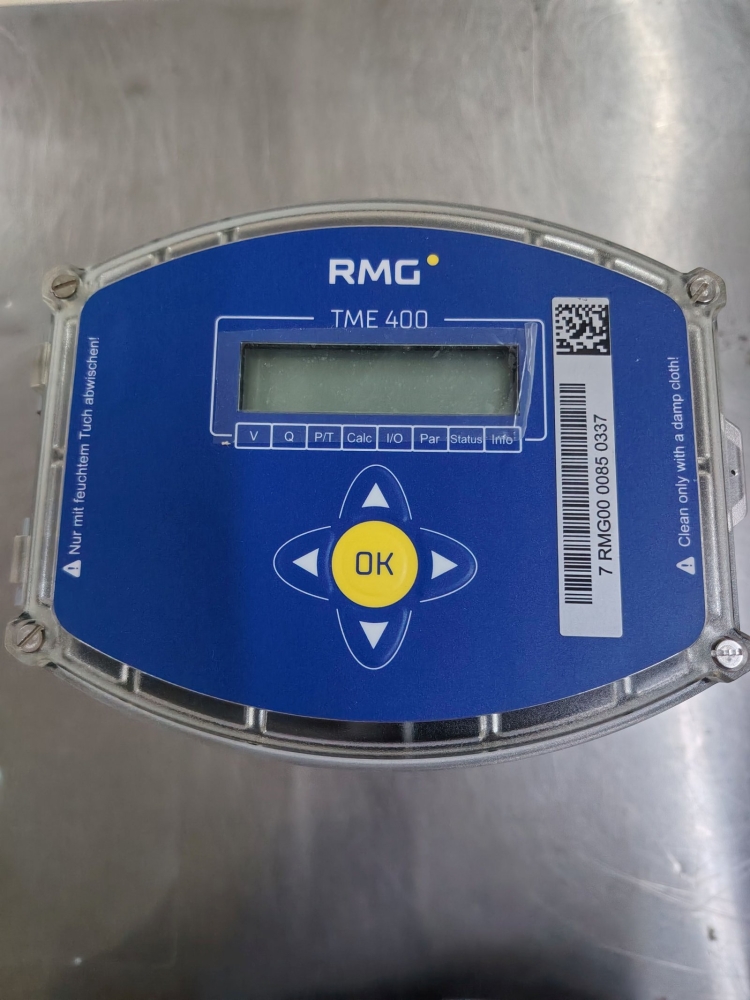

TME 400 (Turbine Meter Electronic) type volumeters offer a number of advantages over classical mechanical turbine meters like display of actual flow rate, data and parameter archiving, various interfaces and optionally integrated volume correction.

Features

• Electronic totalizers

Main totalizer, additional start-stop or resettable totalizer for low flow (or slow down) cut-off by external signal.

• Low-torque metering system with long-term stability

Turbine design with a minimum of moving parts.

• Battery or mains operation
Autonomous operation with lithium cell for 6+ years or external power supply and backup battery to protect against power failures.

• Explosion protection
The TME 400 is intrinsically safe and can be used in zones 1 and 2.

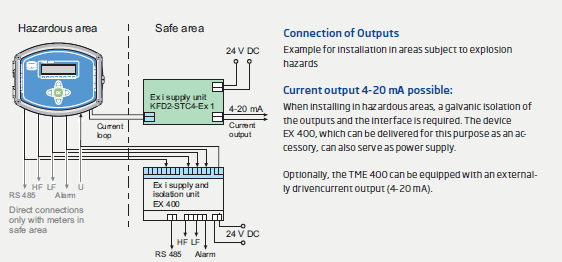

• Outputs Pulse outputs HF and LF (variable), alarm output, current output (4-20 mA, optional).

• Flow display

• Digital interface

serial RS 485 interface for Modbus connection.

• Storage of maximum value (Qm)

• Archive Integrated fail-safe parameter, event and measured value archive.

• RMGViewTME Provided software for convenient parameterization and management of device and stored data.

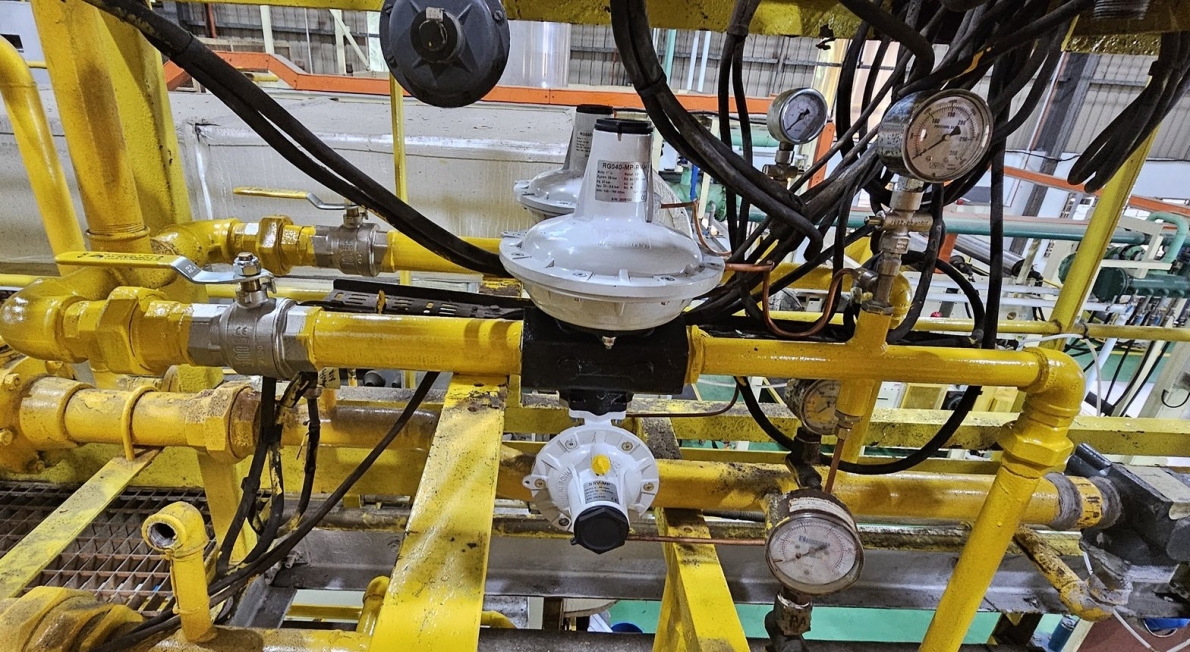

Upgrading Pressure Regulator with GECA 1-1/2" Gas Regulator, Pmax 20bar with Slam Shut Valve

Jun 15, 2026

View Full Size

GECA Direct Acting Pressure Regulator for Natural Gas Application.

The constancy of the regulated pressure and its accuracy, even with significant changes in the upstream pressure and/ or flow rate, make the REXI Series regulator especially suitable for power distribution networks in civil and industrial plants. The basic version of the REXI Series regulator is made according to European Standard EN 334, as a Fail to Open regulator.

The shut-off device can be calibrated for pressure increase, Over Pressure Shut-Off (OPSO) and/or for pressuredecrease, Under Pressure Shut-Off (UPSO). The two intervention modes can be calibrated independently by dedicated calibration springs: one spring for the maximum pressure intervention and the second spring for the minimum pressure intervention. REXI series can be supplied also without Slam Shut valve.

The REXI Series can be equipped with an incorporated relief valve that dischaREXIes the gas into the atmosphere when the regulator outlet pressure exceeds the set value. When the outlet pressure returns to below the set value, the relief valve closes again.
